RPR-0720 (新產品)
Miniature Proximity Sensor
RPR-0720 (新產品)
Miniature Proximity Sensor
RPR-0720 is a digital optical proximity sensor (PS) module equipped with infrared VCSEL (IrVCSEL) and IC with I2C interface. This IC has a built-in infrared receiver and VCSEL driver. Proximity sensor (PS) detects the human or object approaching by the reflection of IrVCSEL light.
Product Detail
規格:
Interface
Digital(I²C)
Integrated Capabilities
VCSEL Drvr. PS
Supply Voltage VDD/VCC[V]
1.7~3.6
Supply Voltage LEDA/VCSELA[V]
2.7~4.5
Temperature Range[°C]
-30 to 85
Focus Length (Recommended Operating Distances)[mm]
(<5)
Emitter WaveLength (Typ.)[nm]
940
Package Size [mm]
2.0×1.0 (t=0.55)
Package Type
SMD
功能:
- Compatible to I²C bus interface (f/s mode support)
- Compatible to 1.8V or 3.3V logic interface
- Directly connected to the IrVCSEL input power supply battery
(VVCSELA Max.4.5V@VCC=1.8V) - Detection range of proximity sensor is around 1 - 15mm (adjustable by I²C)
- Built-in constant current configurable IrVCSEL driver
- Equipped with Ambient light canceling function
- Low light leakage inside the product using micro slit
Supporting Information
背景
近年來,隨著物聯網設備的普及,其中關鍵的感測器開始需要具備更小的體積、更高的性能。ROHM所推出、將發光元件和受光元件一體化封裝的近接感測器系列產品,由於適用性高而被廣泛應用於行動裝置到工控設備等眾多領域。特別是在穿戴式裝置領域,由於產品性能不斷提升,導致所需要的元件數量逐漸增加,對設計靈活性的要求也越來越高,因此對小型感測器產品的需求也日益高漲,在此背景下,ROHM開發出將VCSEL和感測器IC一體化封裝的小型近接感測器。
概要

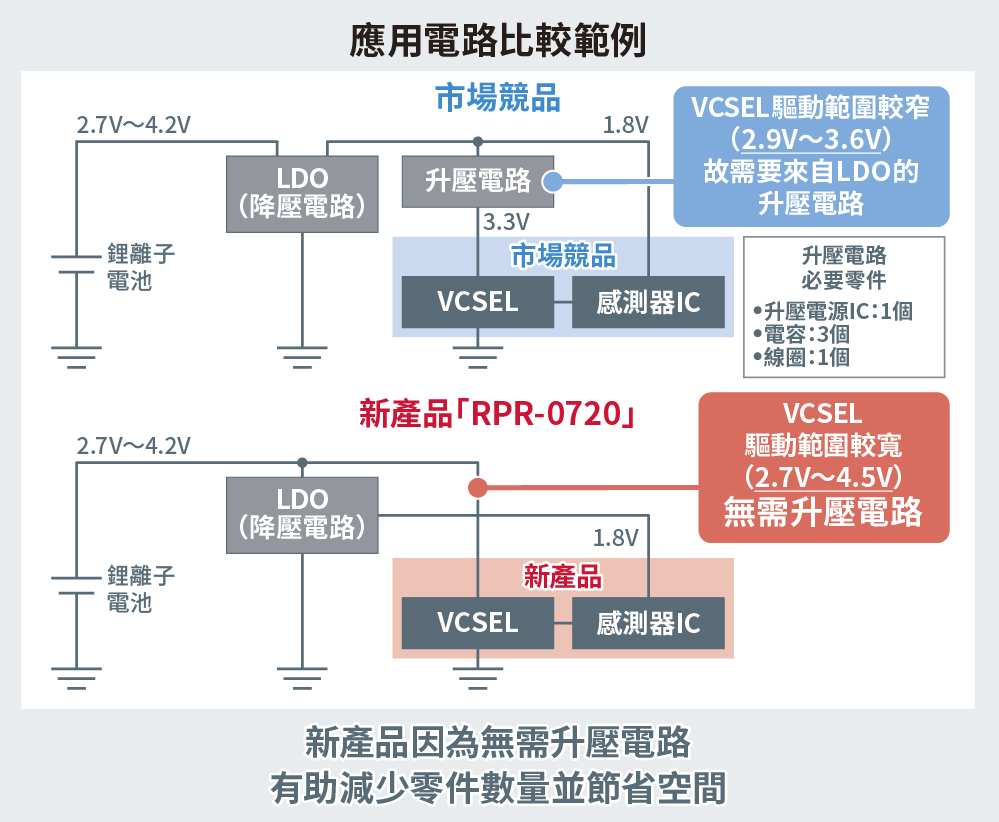

「RPR-0720」是一款以指向性比LED更窄的VCSEL為發光元件、使用感測器IC為受光元件的光學感測器模組。透過ROHM自產元件優化模組結構,實現了小尺寸,與傳統產品相比,產品安裝面積減少了約78%。另外,其所配備的VCSEL支援2.7V~4.5V的輸入電壓範圍,在使用鋰離子電池時無需周邊的升壓電路(例如:1個升壓電源IC、3個電容、1個線圈等),有助應用產品小型化並確保增加電池容量的空間。上述特點使不僅適用於無線耳機和智慧型手錶等穿戴式裝置的脫戴偵測應用,還適用於各類型應用的狀態偵測應用。
應用範例
適用於利用光反射來偵測狀態的各種應用。
◆無線耳機、智慧型手錶、遊戲機控制器、VR頭戴式裝置等的脫戴偵測
◆印表機、影印機、碎紙機等OA設備的紙張偵測
◆電子煙的替換匣裝卸偵測、煙液偵測
◆智慧型手機、筆記型電腦等各種狀態偵測
