碳化矽SiC支援網頁
評估板可輕鬆評估ROHM的 SiC蕭特基二極體, SiC MOSFET, SiC電源模組 （結合了SiC SBD和MOSFET）以及高耐熱功率模組等系列產品。
這些小型、高效的半導體元件能夠顯著縮小最終產品的尺寸，搭配評估板使用還可以幫助客戶進行應用的試作和初期開發。
評估機板陣容
| Category | SiC Product | Image | Part No. | Maker | Product Details | User Guide | Purchase Board | |
|---|---|---|---|---|---|---|---|---|
| SiC-MOS | Evaluation Board |
SCT4XXX series Trench(4th Generation) TO-247-N |  |
NEW P04SCT4018KE-EVK-001 |
ROHM | Details | User Guide Product Specification |
Online Distributors |
| SCT4XXX series Trench(4th Generation) TO-247-4L |  |
NEW P05SCT4018KR-EVK-001 |
Online Distributors | |||||
| SCT3XXX series Trench(3G) TO-247 3L/4L |  |
P02SCT3040KR-EVK-001 | Details | User Guide Product Specification |
Online Distributors | |||
| SiC Module | Drive board | BSM series Planar (2G)(1200V, E / G type) |  |
BSMGD2G12D24-EVK001 | - | User Guide | Inquire | |
| BSM series Trench(3G/4G) (1200V,E/G type) | BSMGD3G12D24-EVK001 | - | User Guide | Inquire | ||||
| BSM series (1200V,C type) |  |
BSMGD3C12D24-EVK001 | - | User Guide | Inquire | |||
| BSM series (1700V,E type) |  |
BSMGD2G17D24-EVK001 | User Guide | Inquire | ||||
| BSM series (1200V,1700V E/G type) |  |
2EG-B series | TAMURA | Tamura Manufacturing’s Website | ||||
| Snubber Module | BSM series (1200V, C type) |  |
MGSM1D72J2-145MH26 | ROHM | - | Inquire | ||
| BSM series (1200V, E / G type) | MGSM1D72J2-145MH16 | - | ||||||
| BSM250 (1700V, E type) | MGSM1D72J3-934MH93 | - | ||||||
| AC/DC | Evaluation Board | SCT2H12NZ |  |
BD7682FJ-LB-EVK-402 | ROHM | Details | Application Note | Online Distributors |
評估機板詳情

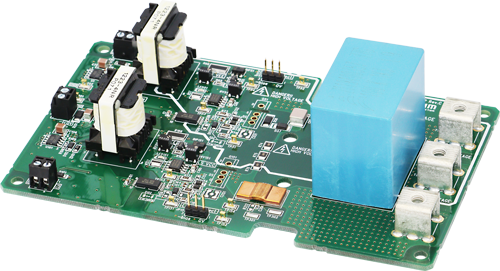

P02SCT3040KR-EVK-001
- 羅姆SCT3040KR（1200V 40mΩ TO-247-4L）評估用
- 透過改變電路常數，可用來評估羅姆其他SiC－MOSFET
- 除TO-247-4L外，還有TO-247-3L的通孔，可在同一評估板上進行對比評估
- 單一電源（+12V工作）
- 可進行最大150A的雙脈衝測試，最大開關工作頻率500kHz
- 對應各種電源拓撲（Buck, Boost, Half-Bridge)
- 內置閘極驅動用隔離電源，可透過可變電阻調整（+12V～+23V）
- 可透過Jumper端子來切換閘極驅動用負偏壓和零偏壓
- 可防止上下臂同時導通，內置過電流保護功能（DESAT, OCP）
1700V 碳化矽SiC-MOSFET + AC/DC轉換器評估機板
配備最適合使用在大功率工具機上的 1700V高耐壓 碳化矽SiC-MOSFET，以及碳化矽SiC驅動用AC/DC轉換IC。
BD7682FJ-LB-EVK-402
- 碳化矽SiC-MOSFET驅動、ACDC評估機板（返馳式轉換器）
- 配備1700V 碳化矽SiC-MOSFET SCT2H12NZ
- 配備AC/DC轉換器控制IC BD7682FJ-LB
- 三相AC400～690V輸入 24V/1A輸出
Application Note
- Basics and Design Guidelines for Gate Drive Circuits
-
- Notes for Temperature Measurement Using Forward Voltage of PN Junction
-
- Two-Resistor Model for Thermal Simulation
-
- Method for Monitoring Switching Waveform
-
- How to Use Thermal Models
-
- What is a Thermal Model?
-

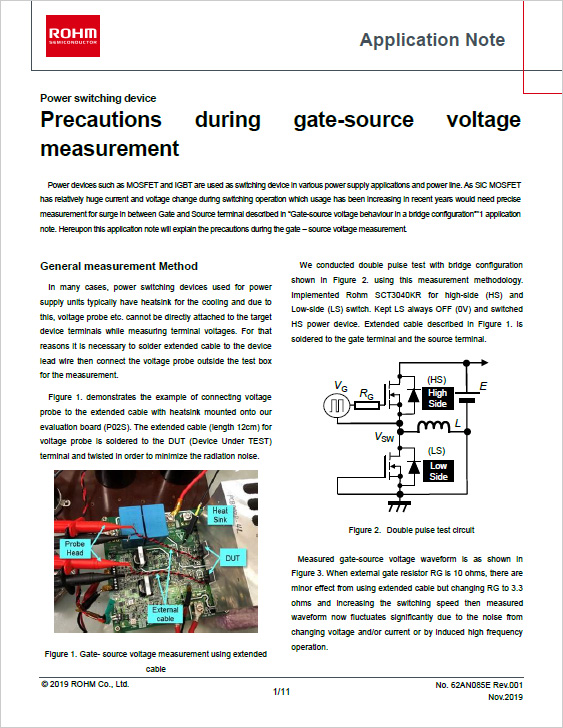

- Precautions During Gate-Source Voltage Measurement
-
- Improving Switching Loss by Driver Source
-
- Snubber Circuit Design Methods for SiC MOSFETs
-
- Gate-Source Voltage Surge Suppression Methods
-
- Gate-Source Voltage Behavior in a Bridge Configuration
-
