LTR100LJZPJU
大功率貼片電阻器/長邊電極型
LTR100LJZPJU
大功率貼片電阻器/長邊電極型

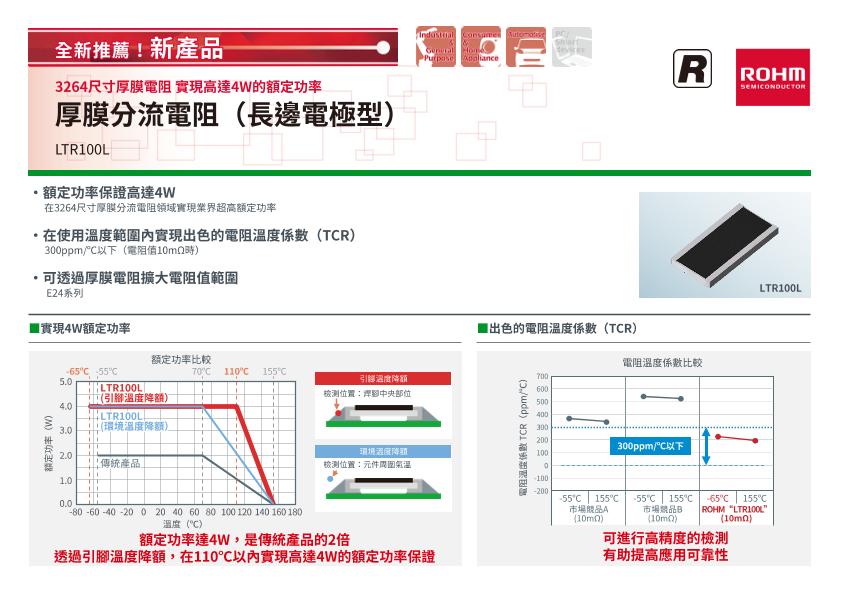

ROHM的大功率貼片電阻器在長邊方向設電極，與通用貼片電阻器相比，產品的額定功率大大提高。另外，由於電極間的距離更短，因此接合可靠性更高。
Lineup
Product Detail
規格:
Automotive grade
Yes
Size[mm](inch)
3264(1225)
Rated Power[W]
4
Resistance Tolerance
J (±5%)
Resistance range[Ω]
10m
Resistance(Min.)[Ω]
0.01
Resistance(Max.)[Ω]
0.01
Temperature Coefficient[ppm/°C]
0 ~ 300
Operating Temperature[°C]
-65 to 155
Type
Wide terminal
Operating Temperature (Max.)[°C]
155
Common Standard
AEC-Q200 (Automotive Grade)
功能:
・額定功率大幅提升・對於溫度週期(cycle)也能保有良好的接合特性
・提升抗突波特性
