PMR100HZP7FV
6432(2512)尺寸，電流檢測用超低阻值晶片電阻(AEC-Q200合格品)
PMR100HZP7FV
6432(2512)尺寸，電流檢測用超低阻值晶片電阻(AEC-Q200合格品)
用於電流檢測的超低電阻晶片電阻器，採用可承受高電流的金屬電阻元件，並獨特地設計為無需修整，即可實現精確的電阻值，以便準確檢測電流和進行高電流切換。
Lineup
Product Detail
規格:
Automotive grade
Yes
Size[mm](inch)
6432(2512)
Rated Power[W]
8, 7
Resistance Tolerance
F (±1%)
Resistance range[Ω]
0.5m to 1.5m
Resistance(Min.)[Ω]
0.0005
Resistance(Max.)[Ω]
0.0015
Temperature Coefficient[ppm/°C]
-75 to 0, ±50
Operating Temperature[°C]
-65 to 175
Type
For current sensing
Operating Temperature (Max.)[°C]
175
Common Standard
AEC-Q200 (Automotive Grade)
功能:
- 2512尺寸實現了7W、8W的額定功率，有助於節省電路空間
- 使用特殊合金作為電阻元件，實現了優異的溫度特性
- 用於電流檢測：支援0.5mΩ起。
- ROHM電阻器已獲得ISO9001 / IATF16949認證
- 符合AEC-Q200標準
Supporting Information
背景
電流檢測用分流電阻主要用於馬達驅動電路、電源的過電流保護以及電池剩餘電量檢測，目前已被廣泛應用於汽車、工業設備、消費性電子設備等眾多市場領域。為滿足各應用的節能要求，就需要使用高精度且高可靠性的分流電阻進行精確的電路控制。此外隨著應用產品的功能增加，電路板上的安裝密度越來越高，這就要求分流電阻體積要更小、功率更高。另外在汽車領域，非常看重在高溫環境下也能確保高電流檢測精度。

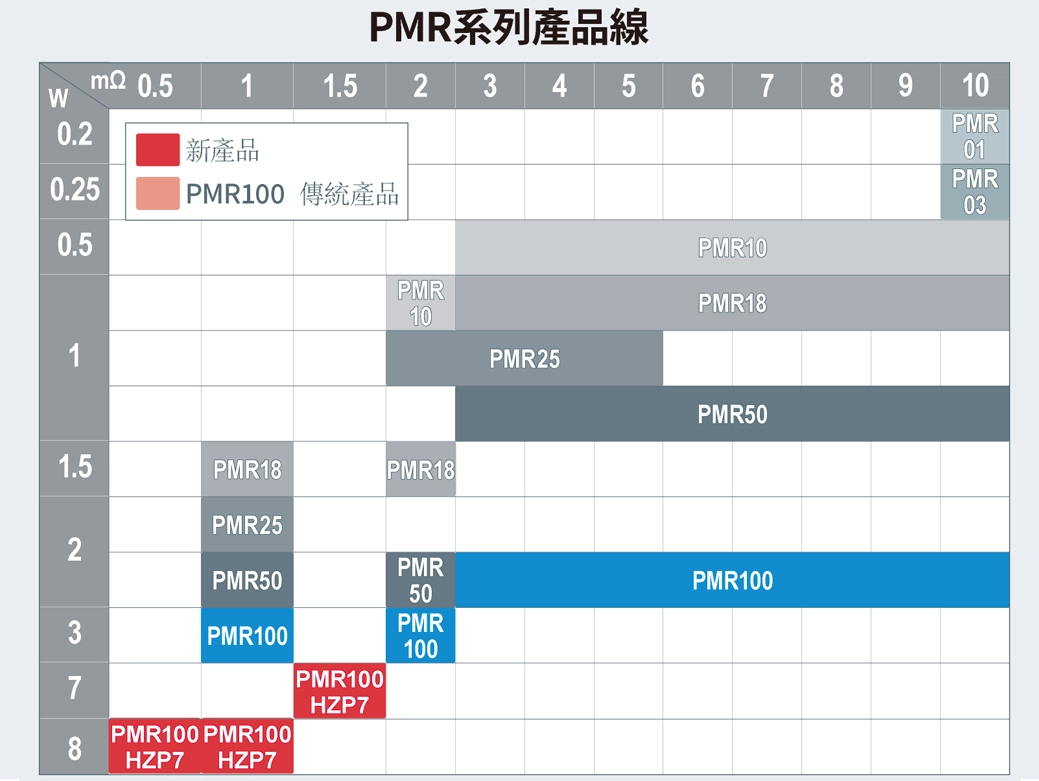

電阻是ROHM的創業產品，ROHM在電阻產品研發方面始終走在業界前端。其中金屬板分流電阻PMR系列因具備豐富的產品陣容而受到客戶好評，目前已被運用於眾多應用中。本次ROHM透過提高功率和擴大阻值範圍，進一步擴大了小型大功率、支援高溫環境使用、高精度的「PMR100」產品陣容。
概要

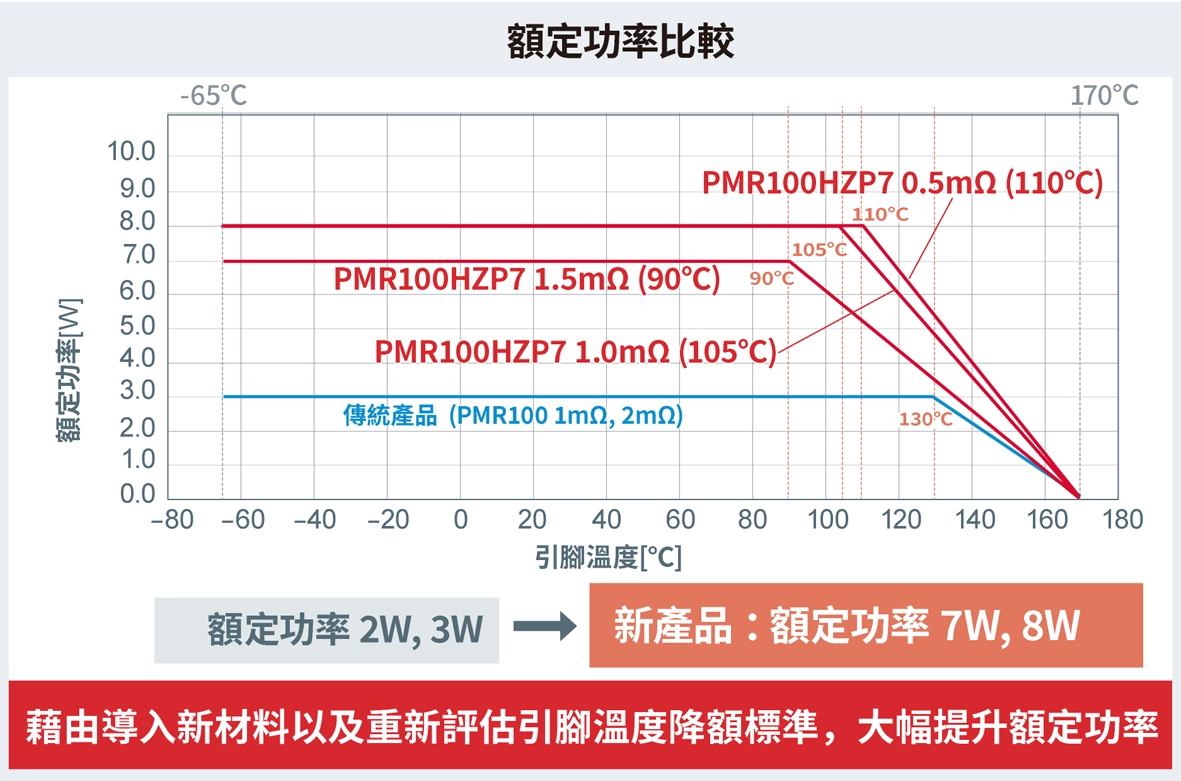

本產品透過採用溫度特性優異的新材料和引腳溫度降額，實現了8W的額定功率。
這在有保護膜的6432尺寸平面晶片型產品中屬於業界最高等級。
與PMR100系列中的傳統2W產品相比，本產品的額定功率提高了約4倍，與3W產品相比額定功率提高了約2.67倍，可以替換大型大功率產品，因此有助應用產品小型化。
另外新產品還保證110℃的額定引腳溫度（0.5mΩ的產品）和－65℃～＋175℃的工作溫度範圍，確保在高溫環境下也能穩定工作。
此外還具有-75～0ppm/℃、±50ppm/℃的出色電阻溫度係數（TCR），可實現高精度且高可靠性的電流檢測。
應用範例
可適用於眾多市場領域的電流檢測應用。
・車載：EPS、電動壓縮機、水泵、油泵、車門馬達、ADAS控制器等
・工業設備：工業設備用功率模組、功率調節器、電動工具、光伏逆變器、伺服器電源、UPS（不斷電系統）、基地台電源等
・消費性電子設備：大型家電（空調、吸塵器、冰箱、洗衣機）等
參考設計 / 應用評估套件
-
- Reference Design - REF68012
- 30A Shunt-based current sensing (uni-direction) with CSA on 24V system
In the automotive and industrial equipment fields, current sensing circuits are essential for applications such as current feedback, overcurrent limitation, and battery level monitoring. The shunt-based current sensing circuit is the most standard circuit for current measurement and monitoring. ROHM provides solutions that leverage the resistor technology it has developed since its founding, as well as the analog and thermal design technologies it has cultivated over many years, contributing to improved system performance, higher power efficiency, and higher reliability through high-precision current sensing.
The components you select will vary depending on the power supply system and detection current value. We have a lineup of reference designs for 12V, 24V, and 48V systems, as well as current sensing values from 20 to 100A. We publish not only the schematic design guide but also thermal evaluation data for shunt resistors. Thermal issues are an important factor in shunt-based current sensing. Please use these as design references to help reduce design man-hours.
This reference design is designed for 30A, uni-direction current sensing on 24V systems.
-
- Reference Design - REF68013
- 50A Shunt-based current sensing (uni-direction) with CSA on 48V system
In the automotive and industrial equipment fields, current sensing circuits are essential for applications such as current feedback, overcurrent limitation, and battery level monitoring. The shunt-based current sensing circuit is the most standard circuit for current measurement and monitoring. ROHM provides solutions that leverage the resistor technology it has developed since its founding, as well as the analog and thermal design technologies it has cultivated over many years, contributing to improved system performance, higher power efficiency, and higher reliability through high-precision current sensing.
The components you select will vary depending on the power supply system and detection current value. We have a lineup of reference designs for 12V, 24V, and 48V systems, as well as current sensing values from 20 to 100A. We publish not only the schematic design guide but also thermal evaluation data for shunt resistors. Thermal issues are an important factor in shunt-based current sensing. Please use these as design references to help reduce design man-hours.
This reference design is designed for 50A, uni-direction current sensing on 48V systems.
-
- Reference Design - REF68014
- 100A Shunt-based current sensing (uni-direction) with CSA on 48V system
In the automotive and industrial equipment fields, current sensing circuits are essential for applications such as current feedback, overcurrent limitation, and battery level monitoring. The shunt-based current sensing circuit is the most standard circuit for current measurement and monitoring. ROHM provides solutions that leverage the resistor technology it has developed since its founding, as well as the analog and thermal design technologies it has cultivated over many years, contributing to improved system performance, higher power efficiency, and higher reliability through high-precision current sensing.
The components you select will vary depending on the power supply system and detection current value. We have a lineup of reference designs for 12V, 24V, and 48V systems, as well as current sensing values from 20 to 100A. We publish not only the schematic design guide but also thermal evaluation data for shunt resistors. Thermal issues are an important factor in shunt-based current sensing. Please use these as design references to help reduce design man-hours.
This reference design is designed for 100A, uni-direction current sensing on 48V systems.
-
- Reference Design - REF68015
- 100A Shunt-based current sensing (bi-direction) with CSA on 48V system
In the automotive and industrial equipment fields, current sensing circuits are essential for applications such as current feedback, overcurrent limitation, and battery level monitoring. The shunt-based current sensing circuit is the most standard circuit for current measurement and monitoring. ROHM provides solutions that leverage the resistor technology it has developed since its founding, as well as the analog and thermal design technologies it has cultivated over many years, contributing to improved system performance, higher power efficiency, and higher reliability through high-precision current sensing.
The components you select will vary depending on the power supply system and detection current value. We have a lineup of reference designs for 12V, 24V, and 48V systems, as well as current sensing values from 20 to 100A. We publish not only the schematic design guide but also thermal evaluation data for shunt resistors. Thermal issues are an important factor in shunt-based current sensing. Please use these as design references to help reduce design man-hours.
This reference design is designed for 100A, bi-direction current sensing on 48V systems.
