BD83070GWL
節能優勢顯著的升降壓型DC/DC轉換器
Description

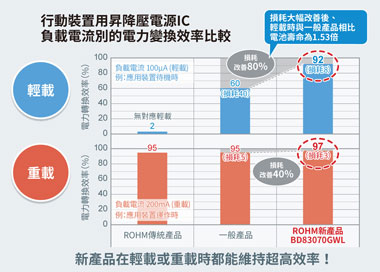

“BD83070GWL”是針對小型電池驅動的電子設備,以“低功耗環保元件的標準”為目標開發而成的超低功耗升降壓型電源IC。產品內建低損耗的MOSFET,並配置低耗電消耗電流電路,在各種電池驅動設備(電動牙刷以及刮鬚刀等)工作時(負載電流200mA時),功率轉換效率高達97%,而且,消耗電流僅為2.8µA,在升降壓型電源IC領域中也達到極高水準。因此,相比普通產品效率大大提升的應用在待機時(負載電流100µA時),電池續航時間可延長1.53倍(ROHM調查資料),非常有助於延長小型電池驅動的各種電子設備的續航時間。
Product Detail
Specifications Data Sheet
ch
1
Integrated FET / Controller
Integrated FET
Topology
Buck / Boost
Synchronous / Nonsynchronous
Synchronous
Vin1(Min.)[V]
2
Vin1(Max.)[V]
5.5
Vout1(Min.)[V]
2.5
Vout1(Max.)[V]
3.3
Iout1(Max.)[A]
1
SW frequency setting (Max.)[MHz]
1.65
Light Load mode
Yes
EN
Yes
PGOOD
No
Operating Temperature (Min.)[°C]
-40
Operating Temperature (Max.)[°C]
85
Package Size [mm]
1.2x1.6 (t=0.57)
Features
- Synchronous Buck-Boost DC/DC Converter
- Automatic PFM/PWM Transition
- Output Current: Up To 1A (VIN > 2.7V, VOUT = 3.3V)
- Selectable Output Voltage: 2.5V or 3.3V
- Efficiency: Up To 95%
- UVLO Detection: 1.61V(Max)
- Built-in Thermal, Over Voltage, And Over Current Protection
Reference Design / Evaluation Tool
-

- Evaluation Board - BD83070GWL-EVK-002
BD83070GWL-EVK-002 is a reference board designed for evaluating the ultra-low power, “BD83070GWL” in compact implementation environments. The board consists of only five components, including the IC, inductor, and capacitors, enabling an ultra-compact mounting area of just 3.3 mm × 3.9 mm. It allows easy evaluation for applications requiring compact size and low power consumption, such as wearable devices, IoT equipment, and mobile devices.
-

- Evaluation Board - BD83070GWL-EVK-001
The BD83070GWL converter is a power supply solution designed for battery powered devices. It can operate at pulse frequency modulation (PFM) to suppress loss and current consumption during light load which has 2.8µA quiescent current at no load. Capable to support up to 1A output on pulse width modulation (PWM) and provides high efficiency for heavy load.
