支援4-6節串聯車用電池平衡IC - BD14000EFV-C

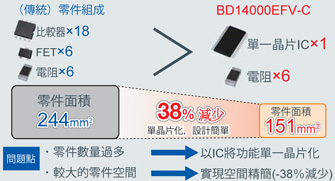

BD14000EFV-C是內建支援4~6節電池的分流方式的蓄電元件平衡功能的自我完結型電池平衡用IC。內建電池平衡所需的全部功能,只需本IC即可實現蓄電元件的電池平衡。

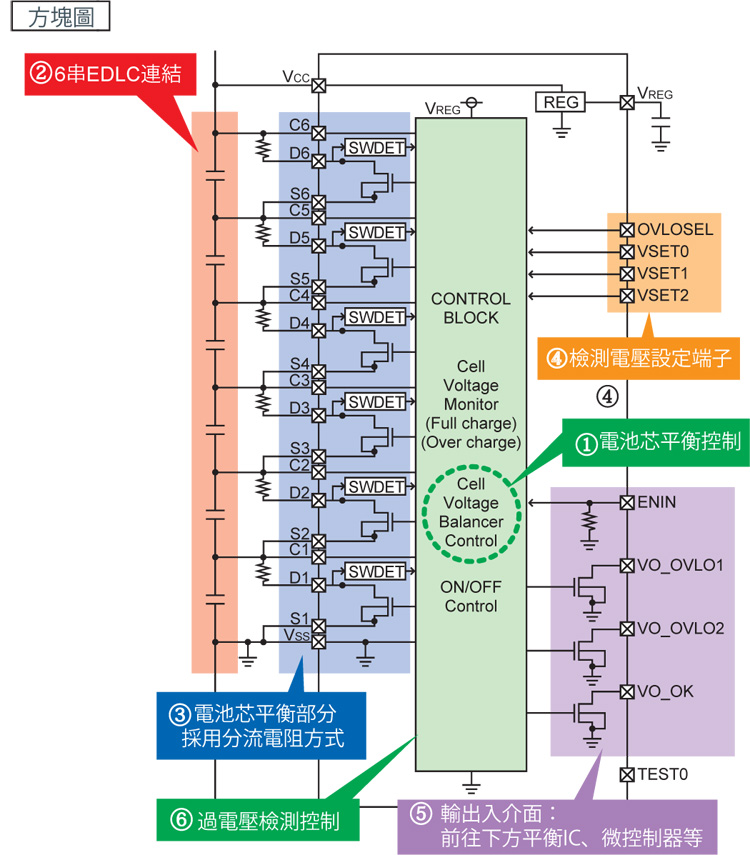

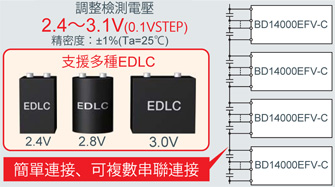

可用於雙電層電容(EDLC)(電池電壓檢測範圍:2.4V~3.1V)。可用於需要具有相同特性(耐壓等)的電池平衡的蓄電元件。內建多種過電壓檢測功能,還可實現電池老化等異常模式的檢測。此外,還可進行使能控制,可根據應用進行動作設定。

還備有包裝數量為250個的小批量捲軸產品。→BD14000EFV-CH2

料號 | BD14000EFV-CE2
狀態 | 推薦品
封裝 | HTSSOP-B30
單位數量 | 2000
最小包裝數量 | 2000
包裝形式 | Taping
RoHS | Yes
Functional Safety | FS supportive

規格:

Grade

Automotive

Common Standard

AEC-Q100 (Automotive Grade)

Supply Voltage(Min.)[V]

8.0

Supply Voltage(Max.)[V]

24.0

ON Resistance [mΩ]

1

Cell Voltage Detection (Min.)[V]

2.4

Cell Voltage Detection (Max.)[V]

3.1

Operating Temperature (Min.)[°C]

-40

Operating Temperature (Max.)[°C]

105

Package

HTSSOP-B30

功能:

  • AEC-Q100 qualified
  • All EDLC cell balancer functions are integrated on a single chip
  • Self- controlled EDLC balance function
  • Adopts shunt resistance method for simple balancing
  • 4 to 6 cell series connection ready
  • Multiple chip series connection is possible
  • Built-in over-voltage detection flag output
  • Detection voltage can be set
