RB218BM200FHH
200V 20A, TO-252, 車電用超低IR蕭特基二極體
RB218BM200FHH
200V 20A, TO-252, 車電用超低IR蕭特基二極體
Quick Download
Description
RB218BM200FHH是超低IR蕭特基二極體，適用於開關電源。本產品是車電用高可靠度產品。
Product Detail
Specifications
Configuration
C-Common
Package Code
TO-252AA (D-PAK)
Package(JEITA)
SC-63
Mounting Style
Surface mount
Number of terminal
3
VRM[V]
200
Reverse Voltage VR[V]
200
Average Rectified Forward Current IO[A]
20
IFSM[A]
100
Forward Voltage VF(Max.)[V]
0.88
IF @ Forward Voltage [A]
10
Reverse Current IR(Max.)[mA]
0.01
VR @ Reverse Current[V]
200
Tj[℃]
175
Storage Temperature (Min.)[°C]
-55
Storage Temperature (Max.)[°C]
175
Package Size [mm]
10.0x6.6 (t=2.3)
Common Standard
AEC-Q101 (Automotive Grade)
Features
- 高可靠度
- 電源模組型
- 陰極共用雙類型
- 超低IR

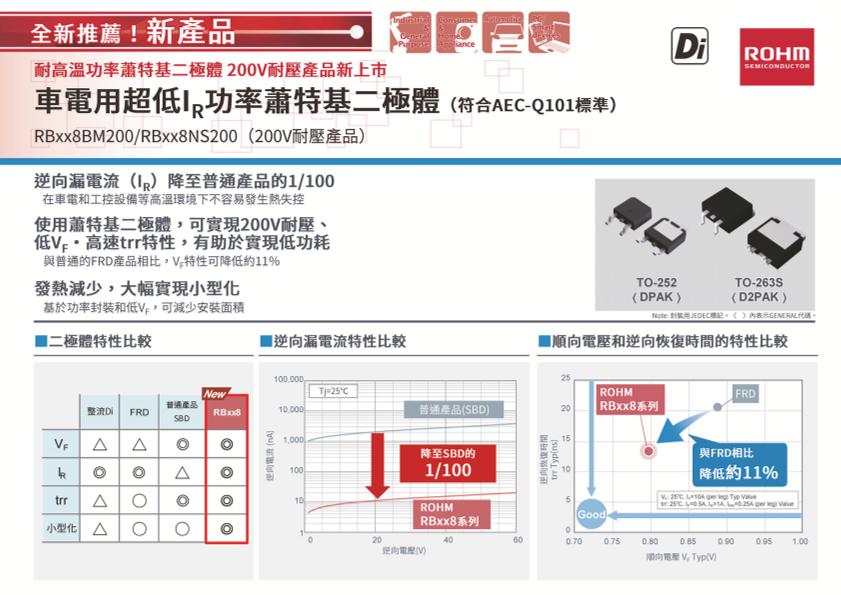

Videos & Catalogs
