BM2P060MF-Z (新產品)
ON Resistor 0.7Ω, PWM Type DC/DC Converter IC With Integrated Switching MOSFET

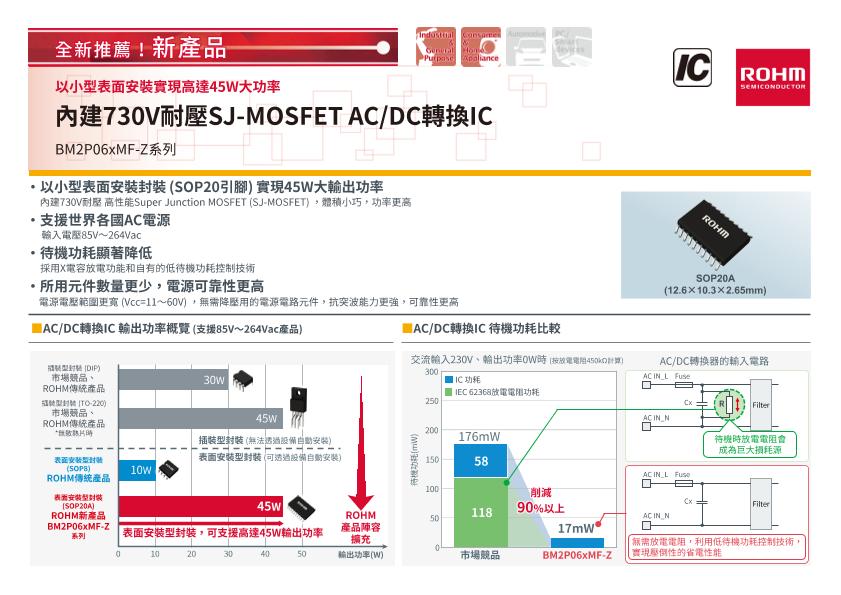

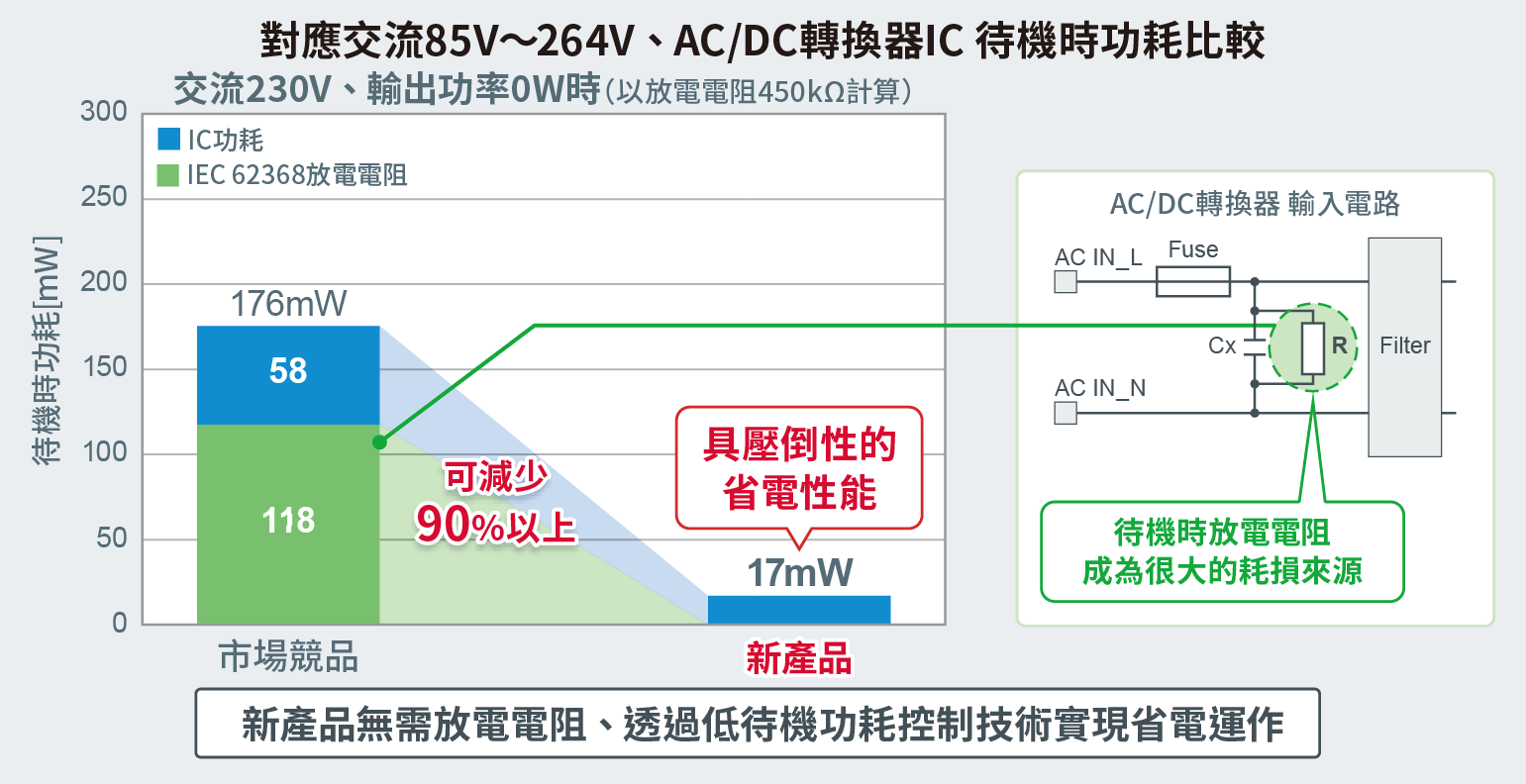

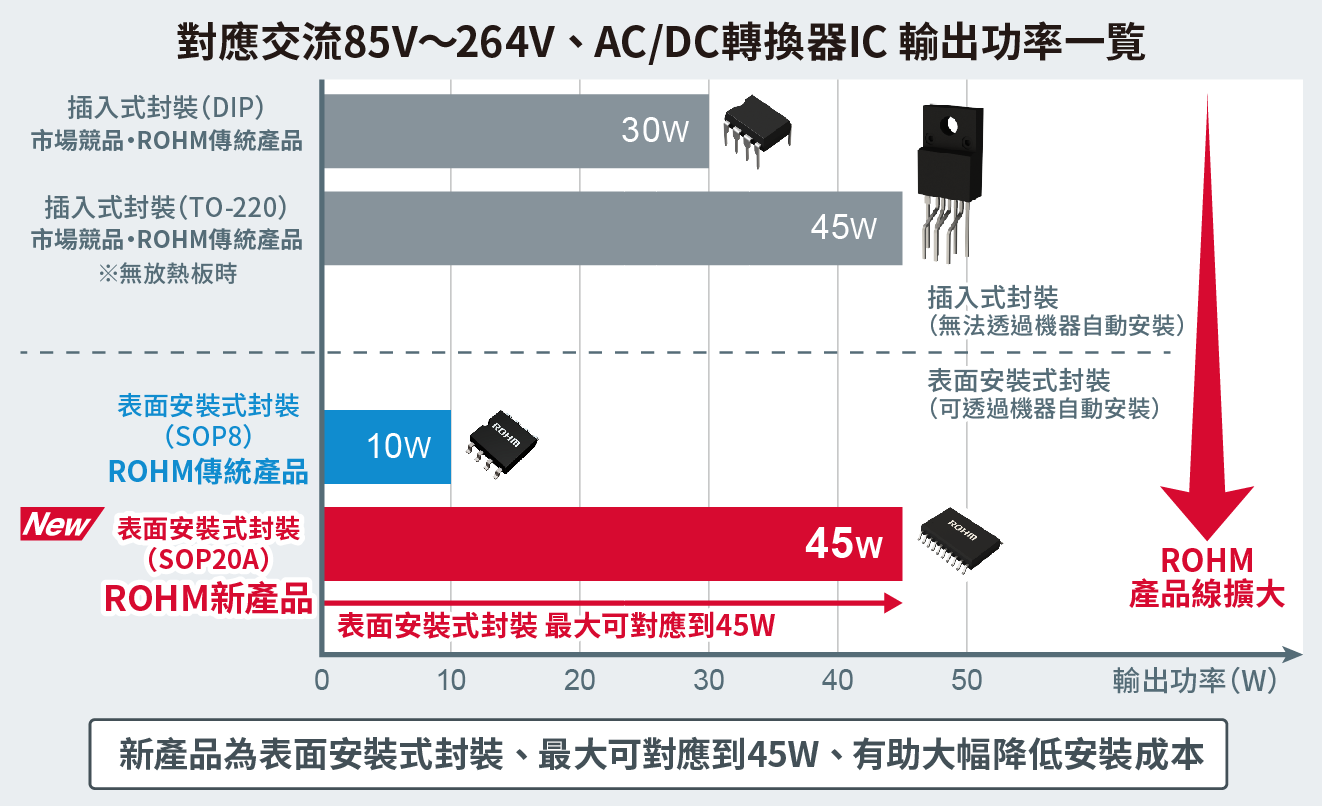

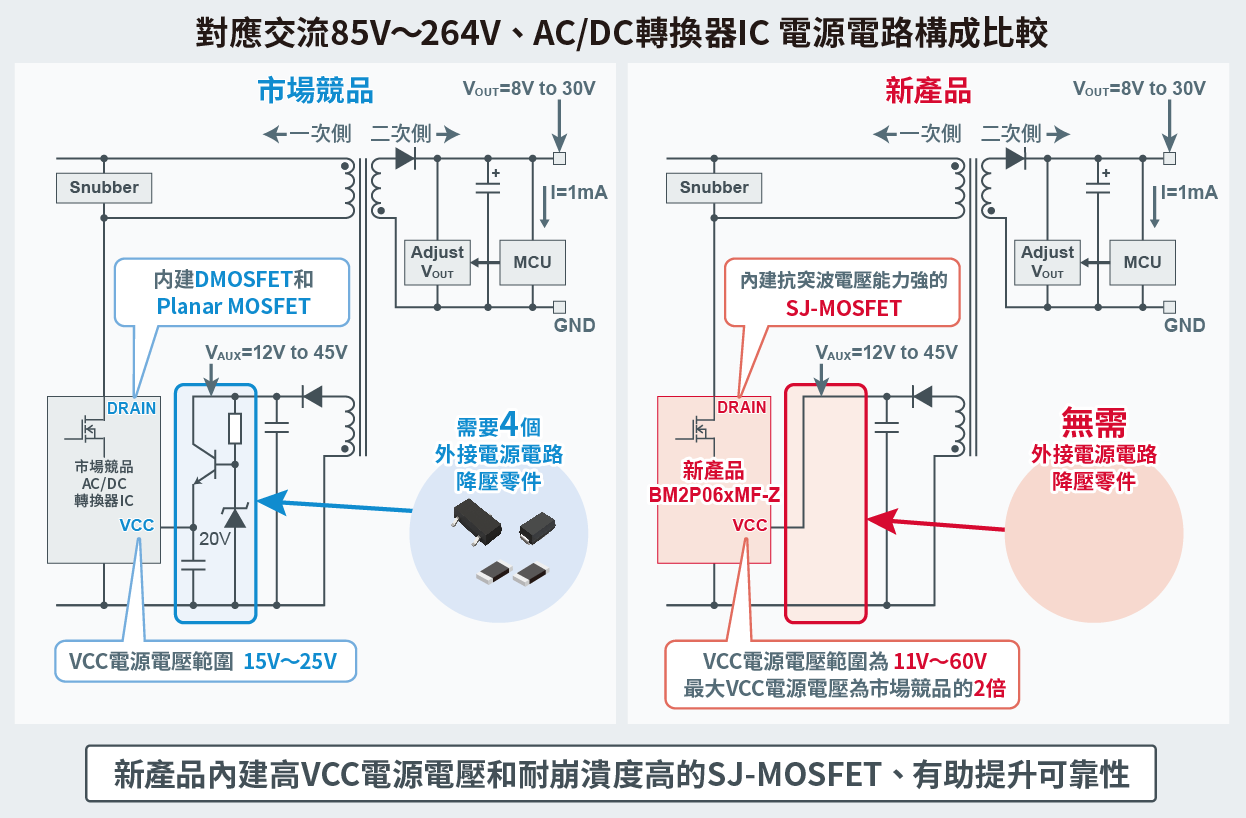

The PWM Type DC/DC Converter for AC/DC provides an optimal system for all products that include an electrical outlet. This IC supports isolated power supply and enables simpler designs of various low power consumption electrical converters. It realizes the high flexibility in power supply design by incorporating a switching MOSFET and with external current detection resistor. This IC can make high efficiency power supply because it has AC low voltage protection function and X capacitor discharge function and operates frequency reduction, minimum ON width adjustment and burst operation at light load. This IC has following various protection functions.

Data Sheet 購買 *
* 本產品是標準級的產品。
本產品不建議使用的車載設備。

Product Detail


料號 | BM2P060MF-ZE2
狀態 | 推薦品
封裝 | SOP20A
單位數量 | 1500
最小包裝數量 | 1500
包裝形式 | Taping
RoHS | Yes

規格:

FB OLP

Auto Restart

BR UVLO

No

External LATCH Function

No

AC Monitor Function

No

VH Terminal UVLO

Yes

Over Current Detection Voltage (typ.)[V]

0.64

Dynamic Over Current Detection

Yes

Frequency Reduction Function

Yes

Current Detection Resistors

External

FET

Integrated

Controller Type

PWM

Vin1(Min.)[V]

11.0

Vin1(Max.)[V]

60.0

Withstand Voltage [V]

730

SW Frequency (Max.)[kHz]

65.0

BR PIN

No

On Resistor (MOSFET)[Ω]

0.7

Channel

1

Light Load mode

Yes

EN

No

Soft Start

Yes

Thermal Shut-down

Yes

Under Voltage Lock Out

Yes

Operating Temperature (Min.)[°C]

-40

Operating Temperature (Max.)[°C]

105

Package Size [mm]

12.8x10.3 (t=2.825)

功能:

  • AC Low Voltage Protection Function(AC UVLO)
  • X Capacitor Discharge Function
  • VCC Pin Low Voltage Protection(VCC UVLO)
  • PWM Type Current Mode Control
  • Frequency Reduction Function
  • Burst Operation at Light Load
  • Burst Voltage Setting Function
  • Minimum ON Width Adjustment at Light Load
  • Soft Start Function
  • FB Pin Overload Protection Function(FB OLP)
  • Over Current Protection Function by cycle
  • Over Current Detection Compensation Function by
    AC Voltage Detection
  • External Stop Function
  • Dynamic Over Current Protection
  • Leading Edge Blanking Function
