Build-in High-Output Speaker Amplifier ML610Q300 Group (U8)

Build-in High-Output Speaker Amplifier ML610Q300 Group (U8)

Lapis

The ML610Q300 group which is equipped with the original RISC 8bit CPU "U8 Core" is a speech playback 8bit MCU.
The ML610Q300 group integrates a high-quality speech playback function and a high-output speaker amplifier into a single chip and makes it easy to add speech o playback functions to your applications.

Easy Part Finder


(Byte)
16
Pin		20
Pin		24
Pin		32
Pin		36
Pin		40
Pin		48
Pin		52
Pin		64
Pin		80
Pin		100
Pin
512K
480K
384K
256KML610Q338-NNNTB(Tray)ML610Q338-NNNTB(Taping)ML610Q339-NNNTB(Tray)ML610Q339-NNNTB(Taping)
192KML610Q327-NNNTB(Tray)ML610Q327-NNNTB(Taping)
160K
128K
96KML610Q305-NNNGD(Tray)ML610Q305-NNNGD(Taping)ML610Q305-NNNTB(Tray)ML610Q305-NNNTB(Taping)ML610Q306-NNNGD(Tray)ML610Q306-NNNGD(Taping)
64K
48K
32K
24K
16K

Parametric Search

CONDENSE PARAMETRIC

顯示/隱藏 EXPAND FILTERS


ROM Capacity [Byte]

UpDown


RAM Capacity [Byte]

UpDown


Input

UpDown


Output

UpDown


Input/Output

UpDown


PWM

UpDown


ADC (method)

UpDown


UART

UpDown


External Interrupt Sources

UpDown


Package

UpDown
Show entries
12
CSV下載 儲存設定

Matching Parts: 12
Compare重置
?供應情況
Operating Voltage (Min.)[V]
Operating Voltage (Max.)[V]
ROM type
ROM Capacity [Byte]
Data Flash Capacity [Byte]
Memory for Sound
RAM Capacity [Byte]
Input
Output
Input/Output
Port (Max.)
Operating Frequency (Max.) High Speed
Operating Frequency (Max.) Low Speed
Minimum Instruction Execution Time
Current Consumption (Typ.@HALT)
Operating Temperature (Min.)[°C]
Operating Temperature (Max.)[°C]
Co-processor for Multiplication and Division
8bit Timer
1kHz Timer
16bit Timer
16bit Multi Functions Timer
32bit Timer
PWM
Capture
WDT
ADC (method)
DAC
I2C
SSIO
UART
I2S
USB
Supply Voltage Detection
CAN
LIN
LCD Driver
External Interrupt Sources
SP Amp Output (W) / Class
Others
Notes
Package
Chip Support
?Halogen Free Support
?Industrial Grade
Automotive Grade
Functional Safety Support
?長期供貨計畫 [年]
ML610Q305-NNNGD(Taping)
購買
推薦品25.5Flash96K2KFlash ROM1K1312-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		------110bit×3
(SA type)		-Master
/Slave
x1		2Half Duplex
×1		--LLD×1---91.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-WQFN32-0505-0.50-A63-YesYes---
ML610Q305-NNNGD(Tray)
查詢
推薦品25.5Flash96K2KFlash ROM1K1312-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		------110bit×3
(SA type)		-Master
/Slave
x1		2Half Duplex
×1		--LLD×1---91.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-WQFN32-0505-0.50-A63-YesYes---
ML610Q305-NNNTB(Taping)
購買
推薦品25.5Flash96K2KFlash ROM1K1312-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		------110bit×3
(SA type)		-Master
/Slave
x1		2Half Duplex
×1		--LLD×1---91.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-TQFP32-0707-0.80-ZK6-YesYes---
ML610Q305-NNNTB(Tray)
查詢
推薦品25.5Flash96K2KFlash ROM1K1312-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		------110bit×3
(SA type)		-Master
/Slave
x1		2Half Duplex
×1		--LLD×1---91.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-TQFP32-0707-0.80-ZK6-YesYes---
ML610Q306-NNNGD(Taping)
購買
推薦品25.5Flash96K2KFlash ROM1K1315-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		------110bit×4
(SA type)		-Master
/Slave
x1		2Half Duplex
×1		--LLD×1---91.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-WQFN36-0606-0.50-A63-YesYes---
ML610Q306-NNNGD(Tray)
查詢
推薦品25.5Flash96K2KFlash ROM1K1315-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		------110bit×4
(SA type)		-Master
/Slave
x1		2Half Duplex
×1		--LLD×1---91.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-WQFN36-0606-0.50-A63-YesYes---
ML610Q327-NNNTB(Taping)
購買
推薦品25.5Flash192K2KFlash ROM4K-626-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		----3-110bit×8
(SA type)		-Master
/Slave
x1		2Half Duplex
×2		--LLD×1---81.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-TQFP48-0707-0.50-ZK6-YesYes---
ML610Q327-NNNTB(Tray)
查詢
推薦品25.5Flash192K2KFlash ROM4K-626-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		----3-110bit×8
(SA type)		-Master
/Slave
x1		2Half Duplex
×2		--LLD×1---81.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-TQFP48-0707-0.50-ZK6-YesYes---
ML610Q338-NNNTB(Taping)
購買
推薦品25.5Flash256K2KFlash ROM4K-630-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		----3-110bit×8
(SA type)		-Master
/Slave
x1		2Half Duplex
×2		--LLD×1---81.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-TQFP52-1010-0.65-ZK6-YesYes---
ML610Q338-NNNTB(Tray)
查詢
推薦品25.5Flash256K2KFlash ROM4K-630-8.192MHz32.768kHz
(Internal RC oscillation)		0.122μs/
30.5μs		2.0μA-4085-4
(16bit×2)		----3-110bit×8
(SA type)		-Master
/Slave
x1		2Half Duplex
×2		--LLD×1---81.0 (@5V)
/D class		Speech function/
ADPCM2
HQ-ADPCM decoder/Built-in speaker Amplifier		-P-TQFP52-1010-0.65-ZK6-YesYes---
Matching Parts: 12
Compare重置
Matching Parts: 12
Compare重置
?供應情況
Operating Voltage (Min.)[V]
Operating Voltage (Max.)[V]
ROM type
ROM Capacity [Byte]
Data Flash Capacity [Byte]
Memory for Sound
RAM Capacity [Byte]
Input
Output
Input/Output
Port (Max.)
Operating Frequency (Max.) High Speed
Operating Frequency (Max.) Low Speed
Minimum Instruction Execution Time
Current Consumption (Typ.@HALT)
Operating Temperature (Min.)[°C]
Operating Temperature (Max.)[°C]
Co-processor for Multiplication and Division
8bit Timer
1kHz Timer
16bit Timer
16bit Multi Functions Timer
32bit Timer
PWM
Capture
WDT
ADC (method)
DAC
I2C
SSIO
UART
I2S
USB
Supply Voltage Detection
CAN
LIN
LCD Driver
External Interrupt Sources
SP Amp Output (W) / Class
Others
Notes
Package
Chip Support
?Halogen Free Support
?Industrial Grade
Automotive Grade
Functional Safety Support
?長期供貨計畫 [年]
scrollable

Show entries
12
X X

      Loading
      Loading
      Loading

      Supporting Information



      Speech playback MCUs(8bit)

      HQ-ADPCM is a high quality sound compression technology developed by Ky’s.
      Ky’s is a registered trademark of Kyushu Institute of Technology.

      Overview

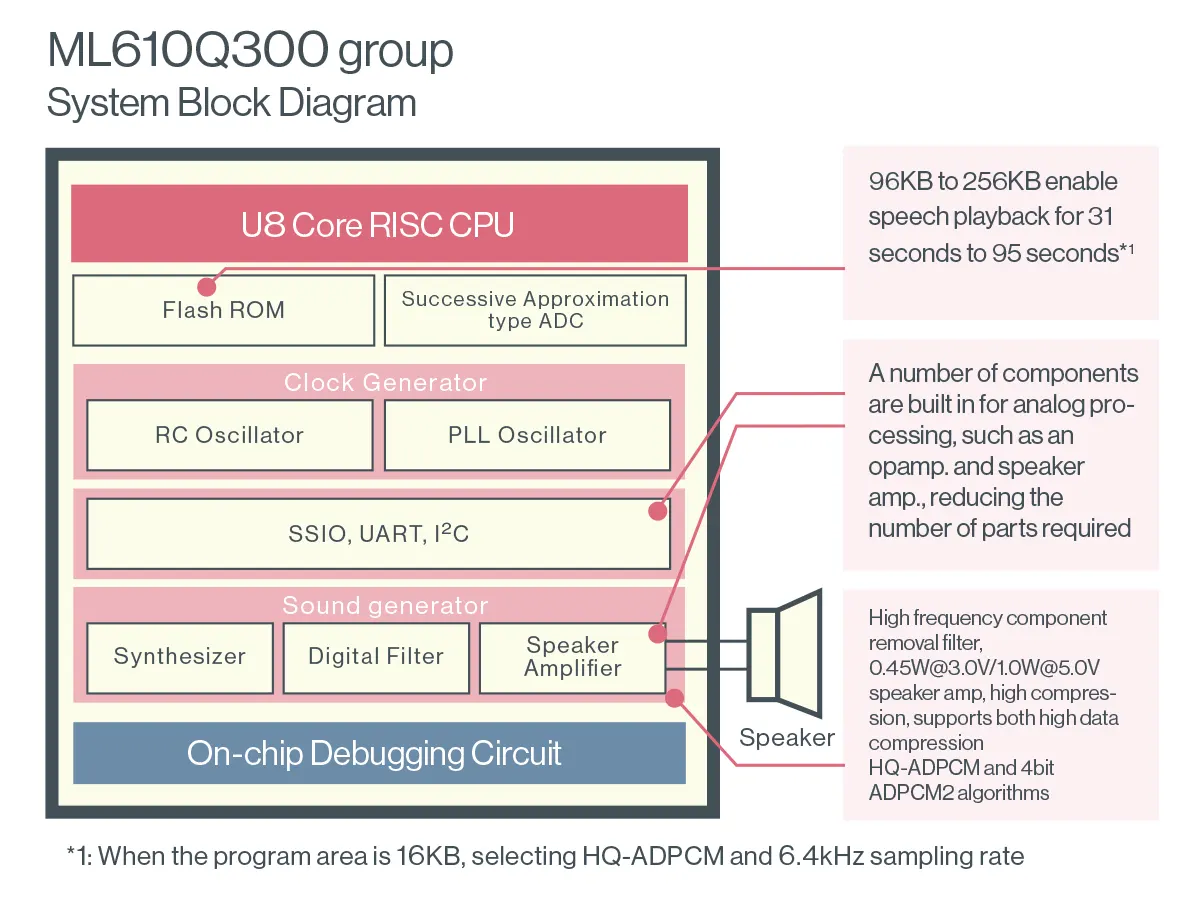

      8bit ML610Q300 System Block Diagram

      The ML610Q300 group CMOS MCUs with speech output functions utilize a proprietary 8-bit U8 core to achieve superior performance.
      A hardware-based high-fidelity speech playback function and high output speaker amp make it possible to provide speech functionality on a single chip, improving sound quality, simplifying control, and maximizing MCU performance.
      The optimized combination of high fidelity speech playback functionality, low power high-performance U8 core CPU, 3V/5V compatible power supply, and multiple peripheral control functions make it possible to provide speech playback operation in a variety of applications, from battery-equipped to AC-powered devices.

      Speech output function on a single chip.
      Reduce external components, space-saving and improve the reliability

      Speech output function on a single chip.Reduce external components, space-saving and improve the reliability Speech output function on a single chip.Reduce external components, space-saving and improve the reliability

      Product Features

      Feature 1Speech output function on a single chip

      Features 1 of ML610Q300
      • The low-pass filter reduces noise
      • Sound algorithms: HQ-ADPCM,4bit ADPCM2,8bit PCM (non-linear/straight),16bit PCM (straight)
      • 1W speaker amplifier (@5V)
      • Power supply voltage range: 2.0V to 5.5V

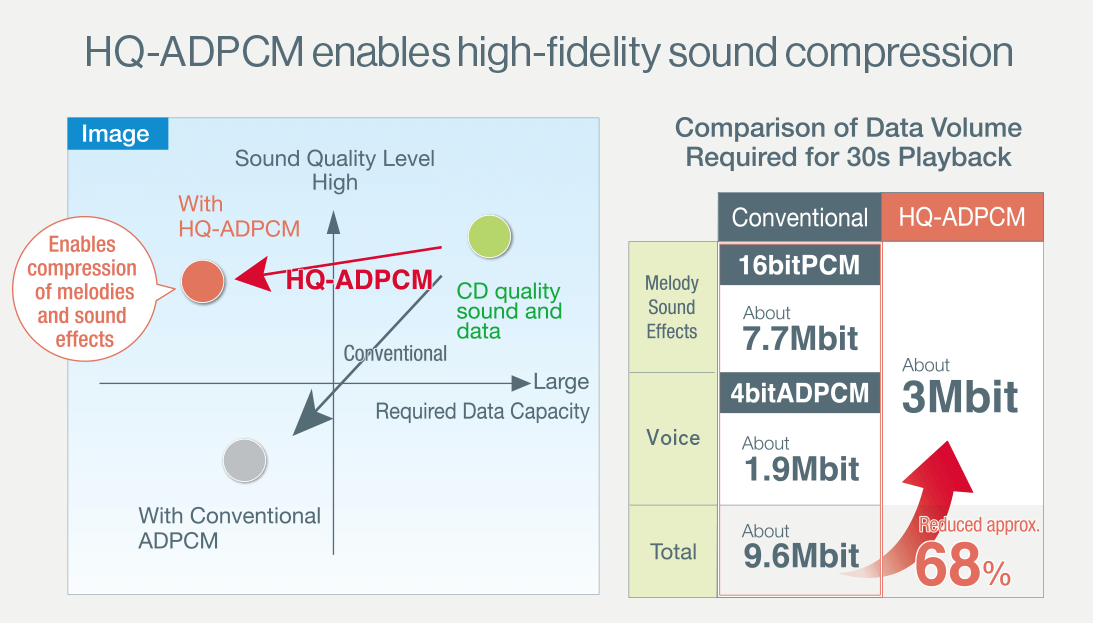

      Feature 2High fidelity, high compression HQ-ADPCM makes it possible to reduce the memory capacity

      HQ-ADPCM enables high fidelity audio compression

      The ML610Q300 group adopts the newly developed high fidelity, high compression sound algorithm HQ-ADPCM that provides a clearer sound and richer audio range while reducing data size compared with conventional ADPCM, providing a more comfortable listening experience.For example, melodies and sound effects that are degraded with ADPCM and cannot be played with uncompressed PCM can be compressed with HQ-ADPCM, ensuring superior sound quality while reducing memory capacity. Up to 80% compression is possible vs.
      4bit ADPCM and 20% compared with 16bit ADPCM.

      Feature 3Easy speech playback

      Speech Playback Conditions Sound Code Data Request Interrupt Time*1
      16bit PCM at 16kHz 250µS
      • *1 : Time from full FIFO to empty
      • Achieves speech playback functionality by simply setting sound code data in the sound regist
      • Integrating 32-byte FIFO into the sound register makes it possible to extend the interval between sound code data request interrupts

      Applications

      The ML610Q300 provides speech playback solutions for dry cell batteries and AC-powered devices.

      The ML610Q300 group is ideal for a variety of applications, from compact battery-driven devices including digital thermometers and health care products to AC-driven devices including security devices, housing equipment, and home appliances.

      speech synthesis utility (Speech LSI Tools)

      Easy development with LAPIS TECHNOLOGY™'s speech synthesis utillty

      Run the 'Speech LSI Tools' program on a PC to create sound code data using a speech playback MCU.
      Speech LSI Tools include a Wave Editor that makes it easy to change (i.e. fade in/out), cut, and connect original sound data (WAVE files) as well as a Speech LSI Utility capable of editing phrases and converting WAVE files to the HQ-ADPCM and ADPCM2 formats.

      Speech LSI Tools Operating Environment

      • ・Microsoft® ・Windows
        Windows 7, Windows 8.1, Windows 10
        Note: Compatible with 32bit (x86)/64bit (x64) environments
      • Processor and memory
        Set up according to OS requirements
      • Hard disk space
        1GB usable HDD space
      • Audio
        Windows compatible sound card and speakers
      • USB Port
        Note: Program data is developed separately in the LEXIDE-U16 integrated development environment.
