Product Detail


料號 | RBR1VWM40ATR
狀態 | 推薦品
封裝 | PMDE
單位數量 | 3000
最小包裝數量 | 3000
包裝形式 | Taping
RoHS | Yes

規格:

Configuration

Single

Mounting Style

Surface mount

Number of terminal

2

VRM[V]

40

Reverse Voltage VR[V]

40

Average Rectified Forward Current IO[A]

1

IFSM[A]

20

Forward Voltage VF(Max.)[V]

0.52

IF @ Forward Voltage [A]

1

Reverse Current IR(Max.)[mA]

0.05

VR @ Reverse Current[V]

40

Storage Temperature (Min.)[°C]

-55

Storage Temperature (Max.)[°C]

150

Package Size [mm]

1.3x2.5 (t=1)

Find Similar

功能:

  • High reliability
  • Small power mold type

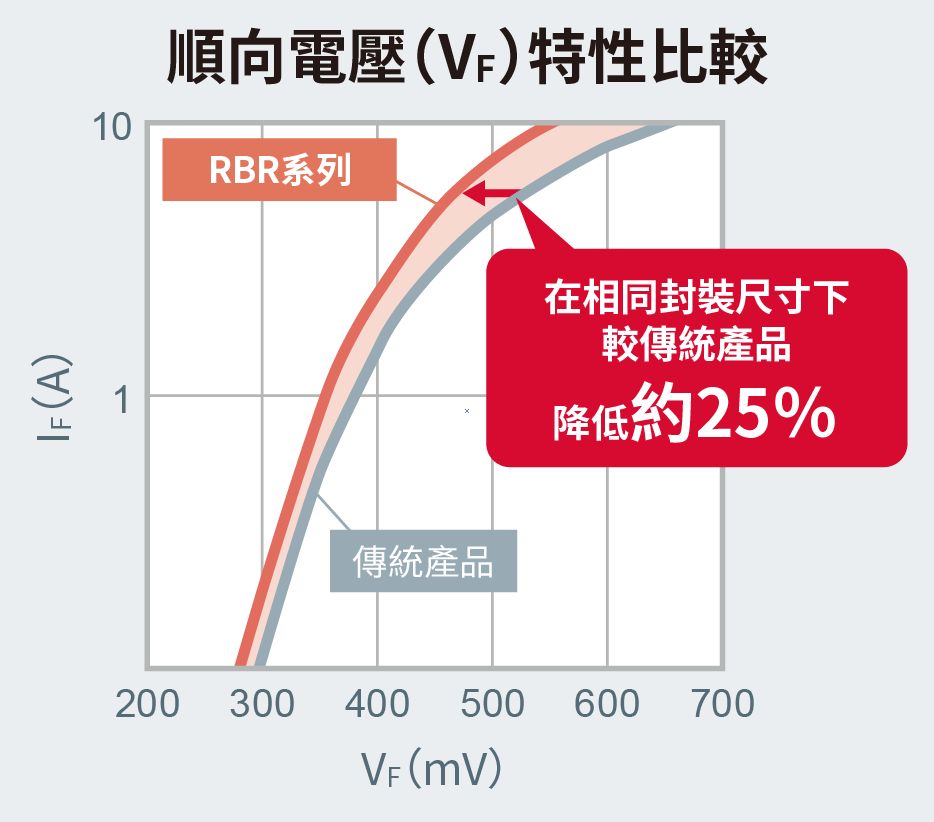

  • Low VF
